Lomanco Ridge Vents
Omni Series, Omni-PRO Series and Aluminum
Lomanco® Ridge Vents

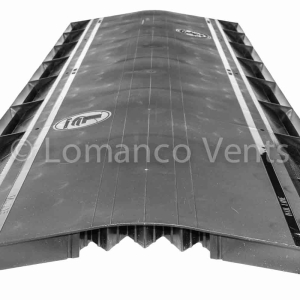

Lomanco® Omni Series Ridge Vents are available in two styles and many variations. The roll version comes in easy-to-handle 20-foot and 30-foot lengths, while the stick version comes in 4-foot lengths. The regular Omni style is traditionally installed using a hammer, while the Lo-Omni style, with its low profile, can be installed using a nail gun.

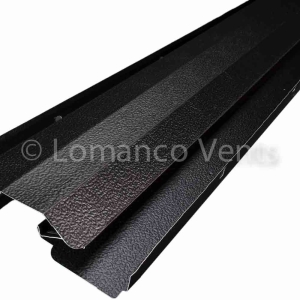

Lomanco offers two styles of Aluminum Ridge Vents—the LPR and VUR. The LPR Ridge Vent is available in 8′ or 10′ sections and is adjustable to fit 3/12 to 12/12 roof pitches. The VUR Ridge Vent is available in 10′ sections and is adjustable to fit 3/12 to 8/12 roof pitches.
Features
All Omni Series Ridge Vents come with a Limited Lifetime Warranty. The engineered material guarantees it will last as long as your shingles. Other common features of the Omni Series Ridge Vents include the airflow acceleration design, which maximizes ventilation and external perpendicular omni baffles, which maximize weather protection. External omni baffles allow airflow from any direction, while the internal baffles maintain superior weather protection and performance. Each Omni Series Ridge Vent design is field tested and proven effective under all weather conditions.
Lomanco® LPR and VUR Ridge Vents are made of embossed aluminum finished for added strength, extended paint life, and blending appearance with shingles. Both offer a high Net Free Area—18 square inches of NFA per foot.
Installation
Installation of Omni Series Ridge Vents is fast and easy and will fit any roof pitch from 2/12 to a 16/12. The Omni Series Ridge Vents feature supported nail holes every foot and will not crush down. Molded-in visual nail lines and center lines along with patented fan-folded end plugs mean no accessories, connectors or alterations are needed.
The LPR and VUR are manufactured with pre-notched nail holes for easy installation. Both are one-piece construction and can be cut at desired length at 2-foot intervals. Hurricane straps and tight-fitting, high-density polyethylene foam end-plugs are available for both the LPR and VUR.
OmniRidge® PRO
- Models PRO4-N, PRO4SWN
- Advanced low profile design.
- “Posi-tabs” contour to shingles for improved weather protection.
- Weatherproof under-lapping joint.
- Six drain holes per foot per side.
- Preformed to 2/12 pitch.
- Includes 30 nails with each piece.
- Model PRO4SWN provides enhanced weather protection.
Lo-OmniRoll®
- Model LOR-30
- Compact 30 foot roll is easy to handle.
- Pneumatic nail gun or hammer installed.
- Exterior convolute baffles—incurved design allows flexibility to roll up and out while maintaining its shape.
- Two coils of 1-3/4″ nails provided.
- Can be cut at one foot intervals—multiple cut lines eliminates unnecessary scrap.
OmniRidge®
- Models OR-4, OR4-N, OR4-S
- External venturi baffle.
- Weatherproof under-lapping joint.
- Four drain holes per foot per side.
- Preformed to 3/12 pitch.
- External water shield.
- Model OR4-N includes 30 nails with each piece.
- Model OR4-S provides enhanced weather protection.
Lo-OmniRidge®
- Models LOR9-4, LOR9-4FR
- Pneumatic nail gun or hammer installed.
- External venturi baffle.
- Weatherproof underlapping joint.
- External water shield.
- Molded centerline for fast and easy alignment.
- Available in Class A Fire Rating – Model LOR9-4FR.
OmniRoll®
- Model OR-20
- Compact 20 foot roll is easy to handle.
- Exterior convolute baffles—incurved design allows flexibility to roll up and out while maintaining its shape.
- Can be cut at one foot intervals—multiple cut lines eliminate scrap.
Aluminum Ridge Vent LPR
- Model LPR
- Low profile blends with roof construction.
- Large 2-inch-wide nailing flange.
- Easy installation—male/female connections—no straps necessary.
- Optional straps available in all colors.
- Aerodynamic design revolutionary three-baffle system for complete weather protection.
Aluminum Ridge Vent VUR
- Model VUR
- Easy installation—male/female connections—no straps necessary.
- Large 2-inch-wide nailing flange.
- Engineered weather infiltration protectors at each connection.
- Exterior wind baffles.
Model | Color | Length (ft.) | NFA (in.2) | CTN. QTY. | CTN. WT. (lbs.) |
---|---|---|---|---|---|
LPR-8 | MF-WH-BR-BL-WB | 8 | 144 | 10 | 52.5 |
LPR-10 | MF-WH-BR-BL-WB | 10 | 180 | 10 | 66.5 |
VUR-10 | MF-WH-BR-BL-WB GR | 10 | 180 | 10 | 48.0 |
VUR-10 | Copper | 10 | 180 | 5 | 69.0 |
L-Plug | - | - | - | 24 | 1.2 |
V-Plug | - | - | - | 24 | 1.0 |
LPR Strap | MF-WH-BR-BL-WB | - | - | 18 | 1.1 |
LPR HStrap | MF-WH-BR-BL-WB | - | - | 18 | 1.8 |
VUR HStrap | MF-WH-BR-BL-WB GR | - | - | 18 | 0.9 |
OR-20 | Black | 20 | 360 | 1 | 13.7 |
OR-4 | Black | 4 | 72 | 10 | 30.5 |
OR4-S | Black | 4 | 72 | 10 | 31.0 |
OR4-N | Black | 4 | 72 | 10 | 33.2 |
OR4-SWN | Black | 4 | 72 | 10 | 33.?? |
PRO4-N | Black | 4 | 72 | 10 | 20.9 |
PRO4SWN | Black | 4 | 72 | 10 | 33.7 |
LOR-30 | Black | 30 | 330 | 1 | 16.2 |
LOR9-4 | Black | 4 | 44 | 10 | 16.6 |
LOR9-4FR | Black | 4 | 44 | 10 | 19.0 |
OW-4 | Black | 4 | 36 | 10 | 22.9 |
Lit# | Title | Product Line | Link |
---|---|---|---|
OLO | Plastic Products Warranty | Omni Series - P60 | View |
438 | PRO4SWN Flyer | Ridge Vents | View |
441 | OR4-S Flyer | Ridge Vents | View |
443 | OR4-N Flyer - Nails | Ridge Vents | View |
445 | OR-4 Flyer | Ridge Vents | View |
447 | OR-20 Flyer | Ridge Vents | View |
448 | LOR-30 Flyer | Ridge Vents | View |
449 | LOR9-4 Flyer | Ridge Vents | View |
450 | LOR9-4 Fire Rated Flyer | Ridge Vents | View |
451 | Omni Wall Flyer | Ridge Vents | View |
453 | PRO-4 Flyer | Ridge Vents | View |
454 | Tile Roof ICC-ES Flyer | Ridge Vents | View |
455 | Tile Roof LOR9-4 Flyer | Ridge Vents | View |
456 | TRV-4 Tile Roof Ridge Vent Flyer | Tile Ridge Vents | View |
Model | Name | Title | Link |
---|---|---|---|
LOR-30 | Lo-OmniRoll | Roll Up Ridge Vent | View |
LOR9-4 | Lo-OmniRidge | Lo-profile Ridge Vent | View |
LOR9-4 | Tile Lo-OmniRidge | Flat Tile Ridge Vent | View |
LPR | Lo-Profile-Ridge | Aluminum Ridge Vent | View |
OR-20 | OmniRoll | Roll Up Ridge Vent | View |
OR-4 | OmniRidge | 4' Stick Ridge Vent | View |
OW-4 | Omni-Wall | Single Slope Roof Install | View |
OW-4 | Omni-Wall | Shed Roof Vent | View |
PRO4-N | OmniRidge PRO | 4' Stick Ridge Vent | View |
PRO4 SWN | OmniRidge PRO | 4' Stick Ridge Vent | View |
TRV-4 | TileRidge | Ridge Vent for tile roofs | View |
VUR | Val-U-Ridge | Aluminum Ridge Vent | View |
Select accreditation below to view Lomanco products listed and official documentation.
From the list, select the product's relevant approval, certification, or compliance.
Name | Model | MD | TDI | CSA | ICC | WUI | Ftd | |
---|---|---|---|---|---|---|---|---|
Lo–OmniRoll | LOR–30 | View | View | View | View | View | View | |
Lo–OmniRidge | LOR9–4 | View | – | View | View | View | View | |
Lo–OmniRidge | LOR9–4FR | – | – | – | – | View | – | |
OmniRoll | OR–20 | – | – | View | – | View | – | |
OmniRidge | OR–4 | View | View | View | View | View | View | |
OmniRidge | OR4–N | View | View | – | – | View | View | |
OmniRidge | OR4–S | View | View | View | – | View | View | |
OmniRidge | OR4–SWN | View | View | – | – | View | View | |
OmniRidge PRO | PRO4–N | View | View | – | – | View | View | |
OmniRidge PRO | PRO4SWN | View | – | View | – | View | View | |
Lo–Profile–Ridge | LPR–8 | View | View | – | – | – | View | |
Lo–Profile–Ridge | LPR–10 | View | View | – | – | – | View | |
Val–U–Ridge | VUR–10 | View | View | – | – | – | View |
