Tile Roof Vents
Lomanco® Ventilation Solutions For Tile Roofs
Lomanco® Tile Roof Vents
Lomanco® Tile Roof Vents provide several ventilation solution options for your tile roof.

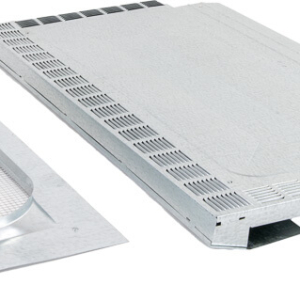

Universal Flat Tile Roof Vent
Models: UFT107 and UFTWUI
Enhance your roof’s performance and aesthetics with the Lomanco Universal Flat Tile Roof Vent, designed specifically for flat tile roof styles. These versatile vents can serve as either exhaust or intake, supporting your home’s ventilation needs while seamlessly blending into the roofline.
With their low-profile design, Lomanco vents are crafted to be discreet and paintable, allowing them to harmonize effortlessly with your existing roof tiles. Each model is engineered with the Lomanco balanced approach to provide optimal airflow and weather protection, safeguarding your attic year-round.
Lomanco® Universal Flat Tile Vent
- Dual Functionality: Can be used as either an exhaust or intake vent.
- Weather Protection: Equipped with screen for enhanced protection against the elements.
- Paintable Finish: Allows for a custom look that matches your roof’s tile color.
- Low Profile: Designed to sit close to the roofline for a cohesive appearance.
- Easy Installation: Fits most flat tile roof styles, whether installed with or without battens.
- Galvanized Steel Construction: Built to withstand the elements for lasting durability.
- Increased Airflow: Promotes efficient attic ventilation.
- Roof Pitch Compatibility: Fits roof pitches from 3/12 to 16/12.
- WUI Compliance: Model UFTWUI meets stringent WUI requirements for fire-prone areas.
- Lifetime Limited Warranty: Lomanco backs these vents with a warranty you can trust.
| Model | Color | Overall Size (in) | Opening Size (in.) | NFA (in.2) | CTN. QTY. | CTN. WT. (lbs.) |
|---|---|---|---|---|---|---|
| UFTWUI | MF | 30 x 21.875 x 2 | 7x19 | 91 | 8 | 45.7 |
| UFT107 | MF | 30 x 21.875 x 2 | 7x19 | 107 | 8 | 45.7 |
| Lit# | Title | Product Line | Link |
|---|---|---|---|
| 440 | UFT107 Universal Flat Tile Vent | Tile Roof | |
| 439 | UFTWUI Universal Flat Tile Vent | Tile Roof |
| Name | Title | Play |
|---|---|---|

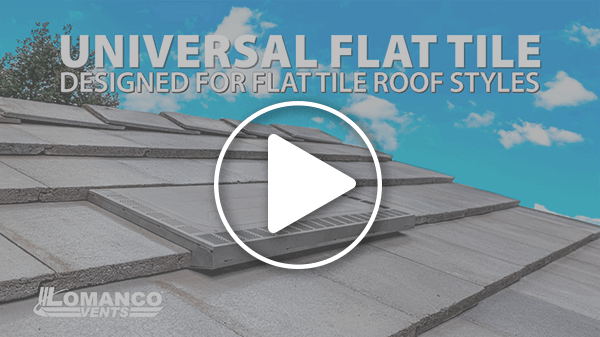

| Universal Flat Tile Vent | UFT Universal Flat Tile Vent Installation | |
| Universal Flat Tile Vent | (Español) UFT Universal Flat Tile Vent Installation |
| Model | Name | Title | Link |
|---|---|---|---|
| UFT107 | Universal Flat Tile Roof Vent | UFT Installation Instructions | |
| UFTWUI | Universal Flat Tile Roof Vent | UFT Installation Instructions |
The Lomanco® TRV-4 TileRidge® exhaust vent is designed for effective attic ventilation in tile roofs, compatible with high and medium profile “S” tile roofs using a 2”x 6” ridge pole. Its efficient airflow design ensures weather protection without filter clogs. Constructed from durable engineered material with a 30-year warranty, it can be paired with compatible intake vents for a balanced system. For optimal results, use it alongside the TileIntake® vent. Installation is discreet under cap tiles, adaptable to various roof pitches.
The Lomanco® TileIntake® IV-9 vent discreetly ensures efficient attic ventilation for tile roofs through a batten system. Its airflow-efficient design features weatherproof joints and doesn’t require a filter, and it can be paired with compatible exhaust vents for a comprehensive Tile Roof Ventilation system. During installation, the vent is positioned beneath the tiles, drawing in external air through gaps, aligning with the Tile Roof Institute’s recommendation for natural air ventilation that enhances temperature regulation. Moreover, the TileIntake® vent not only capitalizes on this but also bolsters air circulation in the batten space, facilitating moisture dispersion and optimizing roof energy performance.

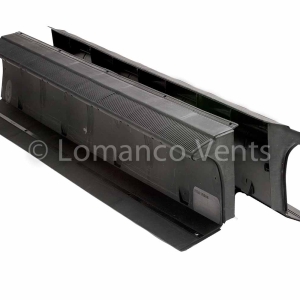

Lomanco® TileRidge® Model TRV-4
- Functional and concealed ventilation installed under the cap tile.
- Excellent airflow design with superior weather protection and no filter to clog.
- Tough durable construction.
- Bottom integrated hinged flange adjusts from 2/12 to 8/12 roof pitches.
- Works on high and medium profile “S” tile roofs with 2”x6” ridge pole.
- Interlocking self alignment design with weatherproof over lapping joint.
- Works with mortar or other approved weather blocking material.
- 18” net free area per linear foot of installed vent. 9 sq. inches per side.
- Molded-in weep openings, nail holes and end plug.
- Cut line provided for two foot lengths.
- Internal water shield.
- Engineered material guarantees longevity.
- 30-year transferable warranty.
- Patented design.
- This is an exhaust louver.

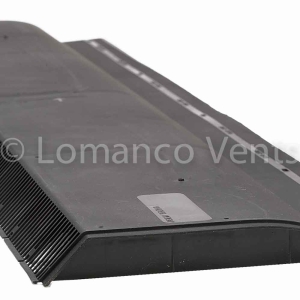

Lomanco® TileIntake® Model IV-9
- Complete invisibility when installed.
- Aerodynamically curved internal baffles to minimize wind resistance.
- Excellent airflow design with superior weather protection and no filter to clog.
- Tough durable construction.
- Interlocking self alignment design with weatherproof over lapping joint.
- Quick, easy installation.
- Works on all tile roofs with use of a batten system.
- 9” Net Free Area per linear foot.
- Supported molded in nail holes.
- Molded-in weep openings, nail holes and end plug.
- Cut line provided for two foot lengths.
- Engineered material guarantees longevity.
- 30-year transferable warranty.
| Model | Color | NFA (in.2) | CTN. QTY. | CTN. WT. (lbs.) |
|---|---|---|---|---|
| TRV-4 | BL | 36 | 12 Sections or 48 ft | 20.5 |
| IV-9 | BL | 36 | 12 Sections or 48 ft. | 17.3 |
| Lit# | Title | Product Line | Link |
|---|---|---|---|
| 454 | Tile Roof ICC-ES Flyer | Ridge Vents | |
| 456 | TRV-4 Tile Roof Ridge Vent Flyer | Tile Ridge Vents | |
| 457 | IV-9 Tile Roof Intake Vent Flyer | Tile Roof | |
| 458 | Tile Roof Permeability Flyer | Tile Roof |
The Lomanco BIB-12TR and BEB-12TR Whirlybird® turbines are sanctioned for installation on all tile and slate roof structures. These turbines boast a remarkable feature set, including a Lifetime Transferable Warranty that sets them apart as an unparalleled choice. Installing these Whirlybird® Tile Roof Turbines is effortless due to their generously sized flashing, and their distinctive vari-pitch base, capable of accommodating a 12/12 roof pitch, further underscores their exceptional design.

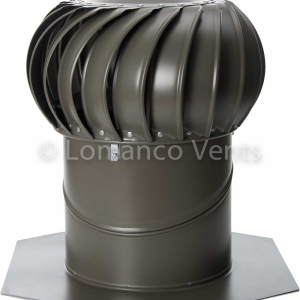

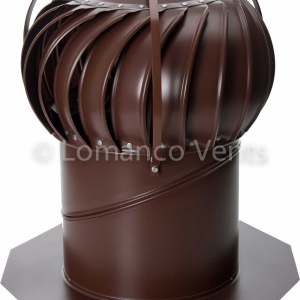

Lomanco® Whirlybird® Tile Roof Turbine
- Forever Guarantee- residential use only.
- Approved for all tile and slate roof construction.
- Permanently lubricated upper and lower ball bearings that ensure long life and no maintenance.
- All-aluminum rust-free construction.
- Rigid spider-type structure.
- Riveted at every connection.
- 21 air-foil curved vanes with rolled vane edges to deflect water.
- Exclusive vari-pitch base adjusts to 12/12 roof pitch.
- Large flashing for easy installation.
- Tested to withstand winds of 110 m.p.h.
- Easy installation.
- Reduces energy bills.
| Model | Color | Hole Size (in) | Height (in) | Base (in) | CTN. WT. (lbs.) |
|---|---|---|---|---|---|
| BIB-12TR | MF-WH-BR BL-WB | 12 | 20.25 | 20 x 20 | 6.7 |
| BEB-12TR | MF-WH-BR BL-WB | 12 | 20.625 | 20 x 20 | 6.7 |
| Model | Name | Title | Link |
|---|---|---|---|
| BEB-TR12 | Tile Roof Turbine | Aluminum Wind Turbine | |
| BIB-TR12 | Tile Roof Turbine | Aluminum Wind Turbine |
12" Externally Braced Wind Turbine Vent. The Original WhirlyBird® Turbine with the Forever Guarantee!
12" Externally Braced Wind Turbine Vent. The Original WhirlyBird® Turbine with the Forever Guarantee!
The Lomanco® Omni Solar Vent™ stands as the ultimate choice for solar-driven defense against heat and moisture in your attic, operating tirelessly from dawn till dusk. Harness the sun’s energy to effectively cool your attic space. Demonstrating unparalleled performance in solar-powered attic ventilation, it boasts a sleek, roof-profile-compatible design that ensures protection against avian or pest intrusion. The Omni Solar Vent™ is especially well-suited for tile roofs, requiring installation on a raised curb and eliminating the need for an electrician.
Lomanco® Omni Solar Vent™ Tile Roof
- 40-watt solar panel. Largest standard solar panel offered on solar attic vents.
- Heavy duty aluminum construction.
- Available in black, white, brown and weathered bronze.
- Solar panel remotely mounted for optimum energy collection.
- 15-foot power cord.
- Easy installation. No electrician required.
- 10-year limited warranty, 5-year on solar panel and motor.
| Model | Color | Base (in) | Fan Blade | Dia (in.) | CTN. WT. (lbs.) |
|---|---|---|---|---|---|
| OSV40 | WH -BR -BL -WB | 33.5 x 33.5 | 5 | 14 | 33.0 |
A proven best performer for solar powered attic ventilation.

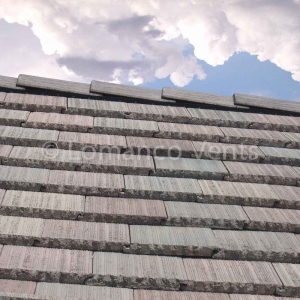

Ideal for flat tile roofs, the Lomanco® Lo-OmniRidge™ vent (LOR9-4) belongs to the Omni Series Shingle Over Ridge Vents, all covered by a Limited Lifetime Warranty. These vents, built from engineered materials, boast an airflow acceleration design, internal curved baffles, and external omni baffles for optimal ventilation and weather protection. Tested under various conditions, they fit roof pitches from 2/12 to 16/12, featuring supported nail holes, visual markings, and fan-folded end plugs for easy installation without extra accessories.
Lo-OmniRidge™ Flat Tile Roof Vent
- Pneumatic nail gun or hammer installed.
- External venturi baffle.
- Weatherproof underlapping joint.
- External water shield.
- Molded centerline for fast and easy alignment.
| Model | Color | NFA (in.2) | CTN. QTY. | CTN. WT. (lbs.) |
|---|---|---|---|---|
| LOR9-4 | Black | 44 | 10 | 16.6 |
Low profile 4' shingle over ridge vent. 44 square inches of Net Free Area per 4' piece.
Low profile 4' shingle over ridge vent. 44 square inches of Net Free Area per 4' piece.
4' tile exhaust vent, 9 square inches of Net Free Area per linear foot of installed vent.
4' tile exhaust vent, 9 square inches of Net Free Area per linear foot of installed vent.
